PI3VT3306LE
Manufacturer:
Diodes Incorporated
Mfr.Part #:
PI3VT3306LE
Datasheet:
Description:

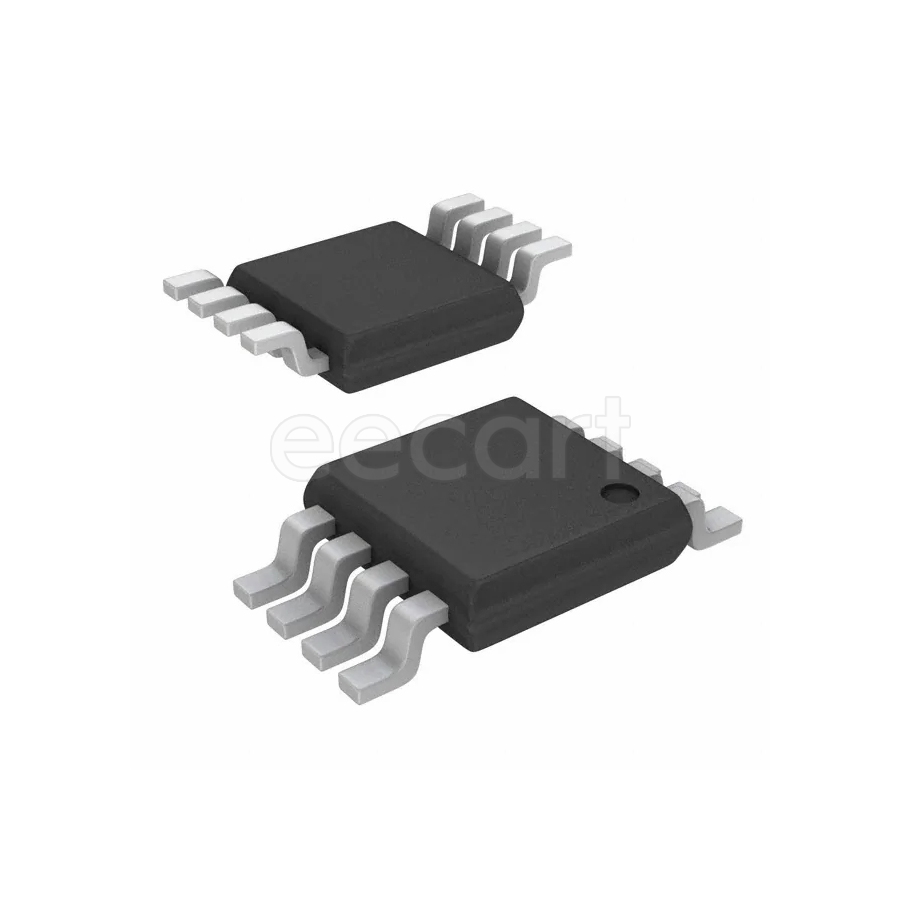

Digital Bus Switch ICs TSSOP-8 SMD/SMT 2 3.3 V 25 Ω 9.8 ns
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Resistance | 25 Ω |
| Packaging | Tube |
| Radiation Hardening | No |
| RoHS | Compliant |
| Number of Elements | 2 |
| Number of Circuits | 2 |
| Operating Supply Voltage | 3.3 V |
| Max Supply Voltage | 3.63 V |
| Min Supply Voltage | 2.5 V |
| Power Dissipation | 500 mW |
| Number of Bits | 2 |
| Turn-On Delay Time | 9.8 ns |
| Quiescent Current | 3 µA |
| Propagation Delay | 9.8 ns |
| High Level Output Current | -120 mA |
| Low Level Output Current | 120 mA |
| Number of Inputs | |
| Supply Type | Single |
| Throw Configuration | SPST |
| Number of Outputs | |
| Independent Circuits | 2 |
| Schedule B | 8542390000 |
| Logic Family | |
| On Resistance (RON) | 25 Ω |
Stock: 7
Distributors
pcbx
pcbxUnit Price$0.36125
Ext.Price$0.36125
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.36125 | $0.36125 |
| 10 | $0.31123 | $3.11230 |
| 25 | $0.29090 | $7.27250 |
| 50 | $0.27190 | $13.59500 |
| 100 | $0.25414 | $25.41400 |
| 300 | $0.24701 | $74.10300 |
| 500 | $0.24008 | $120.04000 |
| 1000 | $0.23387 | $233.87000 |
